Exclusive Frictionless PIVOT-SHAFT Air Valve

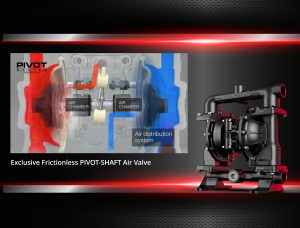

The innovative Air Distribution System (ADS) features a frictionless pivot valve design that delivers maximum air efficiency, minimal wear, and significantly reduced pump vibrations and fluid pulsations. Located at the pump’s core, Balcrank’s ADS directs compressed air through the pump with lube-free operation and only a few moving parts, providing the fastest reciprocating action in the industry.
With this fast changeover shifting, the Pivot Series reduces energy consumption while minimizing pump vibrations and fluid pulsations. The upper half of the pivot valve directs compressed air into the pump’s air chambers, while the lower pads quickly exhaust air to prevent icing. A diaphragm membrane divides the air and fluid chambers, and the fluid section contains ball checks that allow each side of the pump to alternate between a suction stroke and a discharge.
Learn more about AODD PIVOT Series Pumps: Pumps – Balcrank
